用KSV Nima制造，沉积和表征薄膜
The KSV NIMA Langmuir & Langmuir-Blodgett troughs are top-of-the-line instruments used for creating thin film coatings with controlled packing density.
KSV NIMA has the widest selection of Langmuir and Langmuir-Blodgett Troughs of various sizes and functions. The modular trough systems are designed a frame capable of fitting multiple trough tops. The result is a flexible, and interchangeable solutions for multiple applications. Troughs can also be customized upon request.
The Langmuir and Langmuir-Blodgett techniques have unique advantages:
- 精确控制分子堆积密度
- Precise control of coating thickness
- Homogenous deposition over large areas
- 具有不同层组成的多层结构的潜力
- 灵活地研究不同的材料和底物组合
- Unique method to deposit nanoparticles or nanomateirals onto surfaces
- 涂料质量可以在沉积之前先进行预先注册。
由纳米颗粒制成的涂料和薄膜具有许多应用和用途。188金宝搏app安卓下载这包括显示器，传感器，医疗设备，能源存储和能源收集。它能够在优化包装密度，颗粒组织和膜厚度的同时实现均匀的涂层。

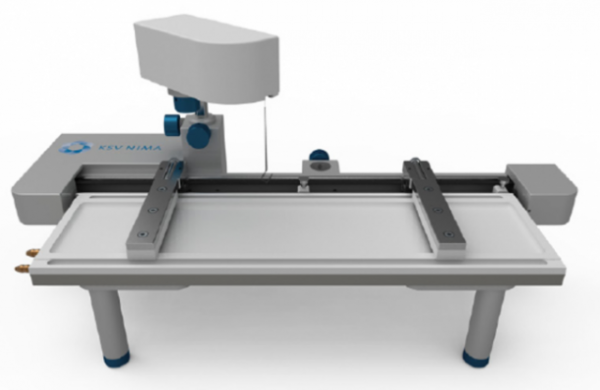

KSV Nima Langmuir槽
在空气或液体液体界面上创建薄膜。测量表面压力面积等温线，以确定单层压缩性，分子取向和每个分子的面积在各个压缩阶段。使用环状压缩或恒定表面压力来研究单层稳定性。亚相注射/蒸气暴露允许探测吸附动力学。

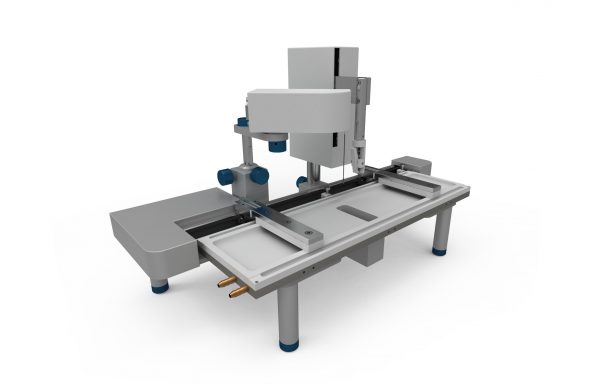

KSV Nima Langmuir-Blodgett槽
Fabricate thin films and transfer to a substrate via either Langmuir-Blodgett (vertical) or Langmuir-Shaefer (horizontal) deposition. Controlling the surface pressure of the transfer gives exquisite control over the packing density of the resulting film.

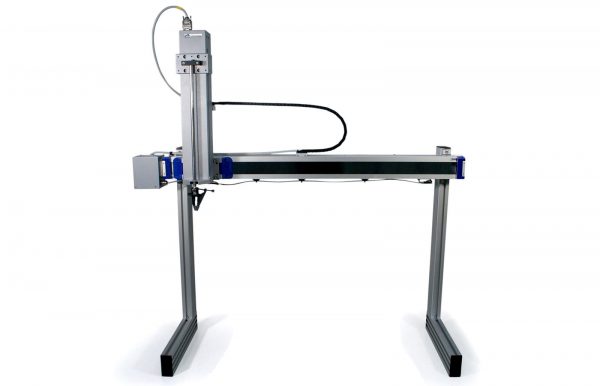

KSV Nima浸入涂料者
通过将底物浸入液体并去除涂料来沉积涂料。这些自动化和准确的薄膜沉积仪器具有各种型号，可供选择，具体取决于样品的大小和要使用的液体数量。对于溶胶 - 凝胶和纳米颗粒涂层特别有用。
KSV NIMA投资理由
High Quality
- The KSV NIMA troughs are composed of single-piece solid PTFE trough tops (that include the dipping well) which enable easy cleaning without any contaminating glues or coatings.
- 可调节的腿，槽顶定位销，屏障限制开关和溢流通道可确保安全可靠。腿可移动，以便于与显微镜集成。
- Designed with an integrated casing for all sensitive parts, ensuring robustness and long-term usage.
Usability
- 使用标准化的Wilhelmy方法和铂板使用其超敏感压力传感器进行表面压力传感。
- 还可以选择一次性纸板（用于易于清洁）或铂杆（用于有限的空间）。
- 强大的KSV NIMA LB软件将所有控件和数据分析集成到同一软件中。
- All troughs come with integrated temperature control channels that can use a separate bath circulator.
Versatility
- Specialized characterization tools assure layer quality before and after the coating process.
- Open modular design with simple trough top and barrier placement enables easy integration with characterization systems, upgradeability and easy cleaning of parts.
- 它还允许研究液-液界面and the alternate system to coat two different materials in alternating layers in a single experiment.
- Availability of a wide range of accessories such as pH probes, different Wilhelmy plates, injection ports, etc.
KSV NIMA槽应用程序188金宝搏app安卓下载
纳米颗粒沉积
Coatings and thin films made from nanoparticles are gaining recognition in products and applications. These include displays, sensors, medical devices, energy storages, and energy harvesting. The KSV NIMA Nanoparticle Deposition creates superior graphene and nanoparticle coatings with controlled particle packing density with ease.
精致的薄膜技术
这些应用的性能和效率取决于涂料特性。188金宝搏app安卓下载Langmuir-Blodgett（LB）和Langmuir-Schaefer（LS）是制造纳米颗粒的薄膜和涂料的一些最复杂的技术。在Langmuir-Blodgett（LB）沉积的情况下，样品通过单层垂直移动。在Langmuir-Schaefer（LS）方法中，样品水平移至界面。该薄膜是通过将材料沉积在被限制在称为槽顶的浅室内的水子阶段上而创建的。单层在一组障碍的帮助下压缩。
表面压力和堆积密度控制Langmuir槽的压力传感器。
