原位系统大大增加了TEM的功能和实验可能性。使用特殊持有者，可以在TEM的真空室内加热或偏置样品。最近，使用带有电子透明窗口的真空兼容MEMS腔室，液体或气相实验已成为可能。
DENSsolutions was founded by a group of scientists who wanted better control over their in situ TEM experiments than what could be achieved with the available products. Together, they designed holders and MEMS nano-chips that provide more flexibility, better control, and minimal drift.
Nanoscience Instruments is the sole distributor for DENSsolutions products in the US. Our dedicated sales, applications, and service staff have over a century of combined EM experience.
我们的原位产品

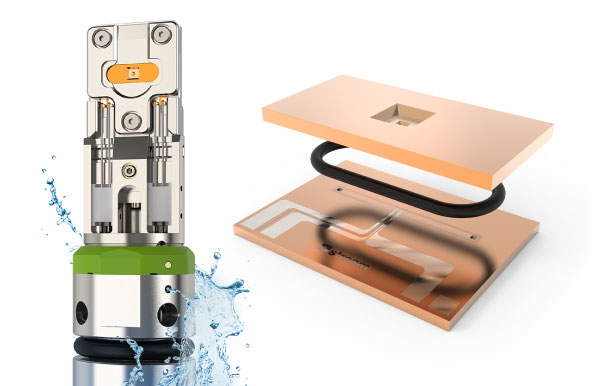

Liquid
溪流allows liquid phase experiments with precise control over both flow rate (0-200 nL/min) and pressure (0-2000 mbar).

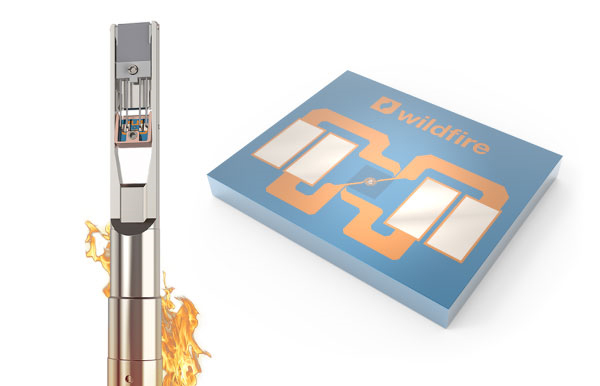

加热
Wildfire将样品加热至1300°C，同时保持仅0.005°C的令人难以置信的温度稳定性。

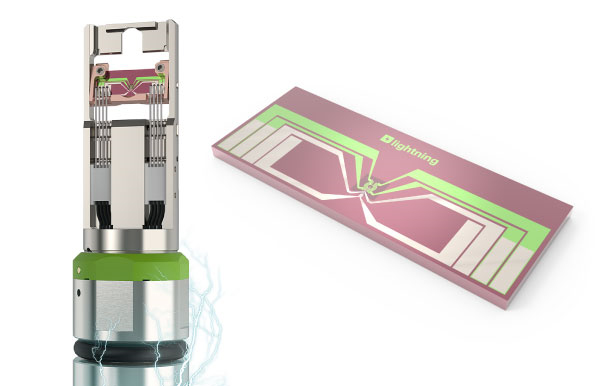

偏置和加热
Lightning将高达100V的偏置增加，最高300 kV/cm的电场增加了野火的供暖性能。

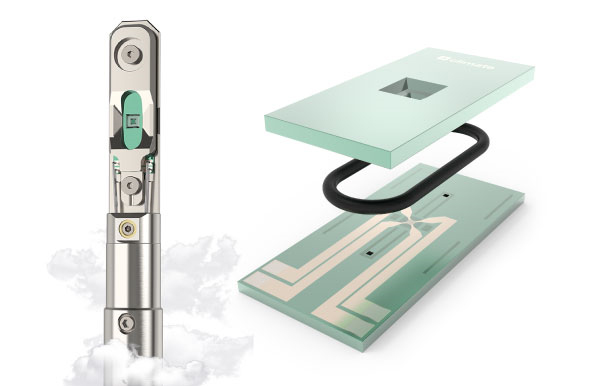

气体
气候控制气体环境达到大气压力，并可以连续混合三种气体。
优点原位持有者
启用更多实验通过为现场研究提供广泛的条件。
保护TEMwith redundant isolation between the nanochip’s environment and the TEM column.
兼容的带有任何JEOL或FEI/Thermofisher TEM，包括限制性的杆块间隙。
高级MEMS设计过程，多物理建模和实验验证，以确保稳定的性能。
Vastly lower drift比其他原位解决方案。无需依靠不可靠的漂移校正软件，即使是过夜的收购也是如此。
EDS测量中原位实验。即使对于低起飞角探测器，纳米芯片也提供了高EDS计数。
什么是原位TEM?
常规TEM的局限性
常规TEM的主要是表征材料结构的成像工具。
在过去的几年中，最新的TEMS启用了原子分辨率成像和分析，这是通过使用图像或探针像差校正的TEM来实现的。事实证明，这些TEMS作为成像工具的性能对于识别各种材料结构非常有价值。
However, these conventional TEMs are still unable to support the whole research process. The reason is that conventional TEM is unable to replicate real-world environmental conditions (heating, gas, liquid, etc.) as the sample is always introduced into a static, high vacuum environment.
这从根本上限制了TEM的价值和可获得的好处。
的力量原位TEM
观察“现场”过程中的过程和在不断变化的外部刺激下观察过程是原位，时间解决的技术的首要目标。
DENSsolutions utilizes MEMS devices, called Nano-Chips, to control the sample’s environmental surroundings and replicate real-life application conditions inside your TEM. The introduction of in situ capabilities into a TEM transforms the system from a static imaging tool into a multi-functional laboratory.
With these in situ microscopy solutions, researchers are now able to characterize structures, measure properties, evaluate performance, and optimize processes & synthesis – all in one system!
If you are interested in learning more about the possibilities of in situ TEM, please contact our applications experts using the form below.
联系我们以了解更多信息
这溪流提供对压力和流速的精确控制，
允许精确操纵或完全溶解光束引起的气泡。
